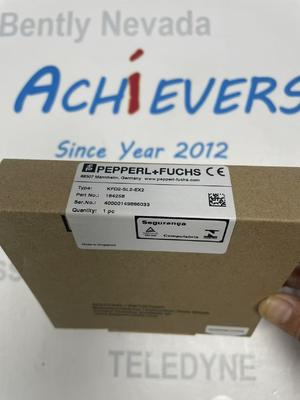

Pepperl+Fuchs KFD2-SL2-EX2 2-channel isolated barrier
Description:
Manufacturer : Pepperl+Fuchs
Product No. :KFD2-SL2-EX2
https://www.achievers-automation.com More Product
The KFD2-SL2-EX2 from Pepperl+Fuchs is a high-performance 2-channel isolated barrier designed for industrial automation applications, especially in hazardous areas. Engineered to meet strict safety and reliability standards, this solenoid driver combines robust galvanic isolation, precise signal control, and advanced line fault detection to ensure seamless operation in critical industrial environments. With compliance to SIL 2 (IEC/EN 61508) and global safety directives, it is an ideal solution for controlling solenoid valves and similar actuators in process industries, manufacturing, and infrastructure projects.
Detail:
| General | Signal Type | Digital Output |
| Safety Integrity Level (SIL) | SIL 2 (acc. to IEC/EN 61508) | |
| EU-Type Examination Certificate | ZELM 00 ATEX 0024 | |
| Marking | II (1) G (Ex ia Ga) IIC; II (1) D (Ex ia Da) IIIC; I (M1) (Ex ia Ma) I | |
| Power Supply | Connection | Power Rail or Terminals 14+, 15- |
| Rated Voltage | 20 ... 30 V DC | |
| Maximum Safe Voltage | 40 V | |
| Power Consumption | Max. 3.3 W (at 45 mA output current) | |
| Input | Connection Side | Control Side |
| Connection Terminals | 7, 8, 9 | |
| Input Current | Approx. 3 mA (at 24 V DC) | |
| Signal Level (1-signal / 0-signal) | 16 ... 30 V DC / 0 ... 5 V DC | |
| Maximum Safe Voltage | 60 V | |
| Output | Connection Side | Field Side |
| Connection Terminals (Channel 1 / Channel 2) | 1+, 2-, 3 / 4+, 5-, 6- | |
| Internal Resistor | 272 Ω | |
| Maximum Output Current | ≤ 45 mA | |
| Minimum Output Voltage | ≥ 11.7 V | |
| Open Loop Voltage | Min. 24 V | |
| Energized / De-energized Delay | ≤ 20 ms / ≤ 20 ms | |
| Output Ex Rating | Ex ia | |
| Output Maximum Voltage / Current / Power | 28 V / 110 mA / 770 mW (linear characteristic) | |
| Line Fault Detection | Short-Circuit Threshold | < 50 Ω |
| Open-Circuit Threshold | > 10 kΩ | |
| Test Current | < 650 µA | |
| Galvanic Isolation | Input/Output / Input/Power Supply / Power Supply/Output | Reinforced insulation (IEC/EN 61010-1), 300 Vₑff rated insulation voltage |
| Indicators & Settings | Display Elements | LEDs |
| Control Elements | DIP Switch | |
| Configuration Method | Via DIP Switches | |
| Labeling | Space for front labeling | |
| Environmental & Mechanical | Ambient Temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Degree of Protection (IP Rating) | IP20 (IEC 60529:2001) | |
| Connection Type | Screw Terminals | |
| Dimensions (W x H x D) | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch), Housing Type B2 | |
| Mass | Approx. 150 g | |
| Mounting | 35 mm DIN Mounting Rail (acc. to EN 61010-1:2010) | |
| Compliance | Electromagnetic Compatibility (EMC) | Directive 2014/30/EU; EN 61326-1:2013 (industrial locations); NE 21:2006 |
| Protection Against Electrical Shock |
