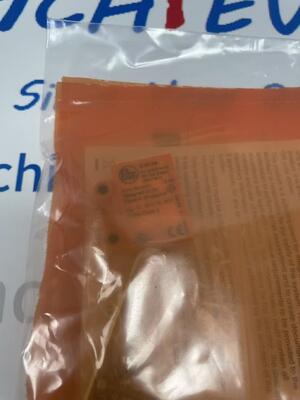

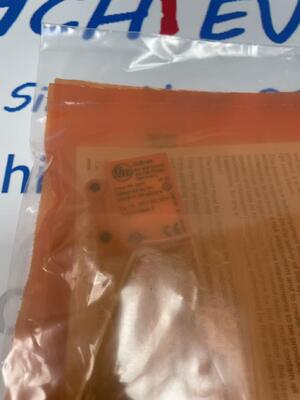

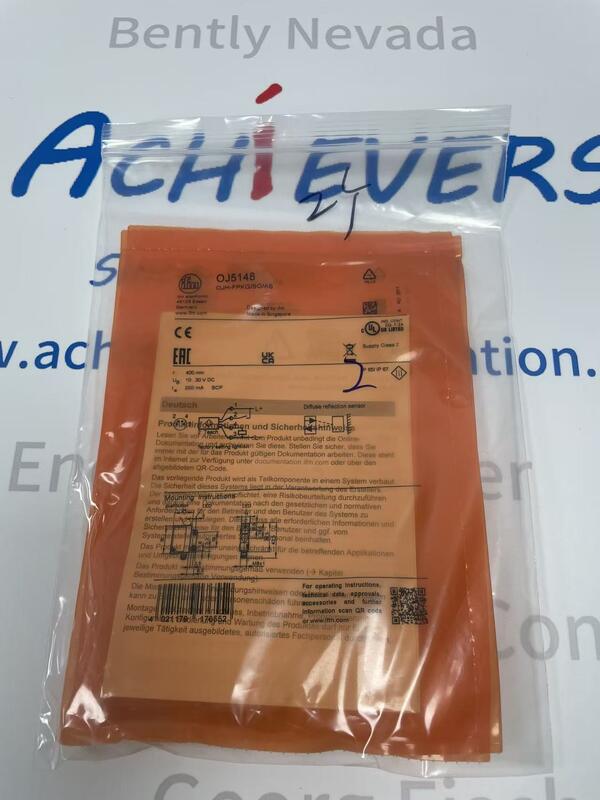

IFM OJ5148 Diffuse Reflection Sensor
Product Details:
Manufacturer : IFM
Product No. : OJ5148
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Description:
|
Parameter
|
Specification
|
|---|---|
|
Product Model
|
IFM OJ5148
|
|
Sensor Type
|
Diffuse Reflection Sensor with Background Suppression
|
|
Type of Light
|
Red Light, Unpolarized, Wavelength: 660 nm
|
|
Detection Range
|
15 ... 400 mm (white paper 200 x 200 mm, 90% remission), adjustable
|
|
Max. Light Spot Diameter
|
18 mm (light spot dimensions refer to range)
|
|
Electrical Data
|
Operating Voltage: 10 ... 30 DC; Current Consumption: 25 mA; Protection Class: III; Reverse Polarity Protection: Yes
|
|
Outputs
|
Electrical Design: PNP; Output Function: Light-on/Dark-on (programmable); Max. Voltage Drop: 2.5 V DC; Max. Switching Current: 200 mA; Switching Frequency: 1000 Hz; Short-Circuit Protection: Yes (pulsed); Overload Protection: Yes
|
|
Operating Conditions
|
Ambient Temperature: -25 ... 60 °C; Protection Rating: IP 67
|
|
Mechanical Data
|
Housing: Rectangular; Dimensions: 35 x 11 x 24 mm; Weight: 34.9 g; Housing Material: ABS; LED Window: SEPS; Pushbutton: SEPS; Lens Material: PMMA
|
|
Displays & Operating Elements
|
Switching Status Display: 1 x Yellow LED; Operation Display: 1 x Green LED; Electronic Lock: Yes
|
|
Electrical Connection
|
Connector: 1 x M8; Coding: A
|
|
Tests & Approvals
|
EMC: EN 60947-5-2; MTBF: 556 Years
|
|
Parameter
|
Specification
|
|---|---|
|
Product Model
|
IFM OJ5148
|
|
Sensor Type
|
Diffuse Reflection Sensor with Background Suppression
|
|
Type of Light
|
Red Light, Unpolarized, Wavelength: 660 nm
|
|
Detection Range
|
15 ... 400 mm (white paper 200 x 200 mm, 90% remission), adjustable
|
|
Max. Light Spot Diameter
|
18 mm (light spot dimensions refer to range)
|
|
Electrical Data
|
Operating Voltage: 10 ... 30 DC; Current Consumption: 25 mA; Protection Class: III; Reverse Polarity Protection: Yes
|
|
Outputs
|
Electrical Design: PNP; Output Function: Light-on/Dark-on (programmable); Max. Voltage Drop: 2.5 V DC; Max. Switching Current: 200 mA; Switching Frequency: 1000 Hz; Short-Circuit Protection: Yes (pulsed); Overload Protection: Yes
|
|
Operating Conditions
|
Ambient Temperature: -25 ... 60 °C; Protection Rating: IP 67
|
|
Mechanical Data
|
Housing: Rectangular; Dimensions: 35 x 11 x 24 mm; Weight: 34.9 g; Housing Material: ABS; LED Window: SEPS; Pushbutton: SEPS; Lens Material: PMMA
|
|
Displays & Operating Elements
|
Switching Status Display: 1 x Yellow LED; Operation Display: 1 x Green LED; Electronic Lock: Yes
|
|
Electrical Connection
|
Connector: 1 x M8; Coding: A
|
|
Tests & Approvals
|
EMC: EN 60947-5-2; MTBF: 556 Years
|
