Description:

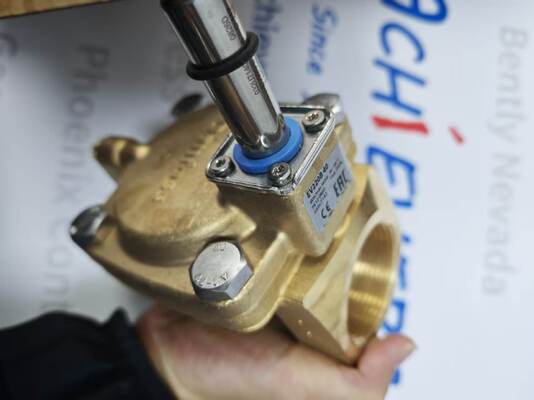

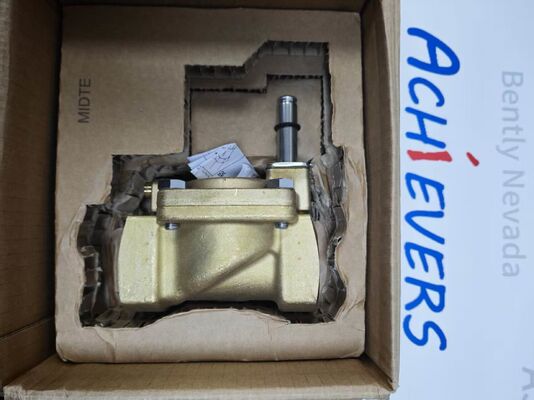

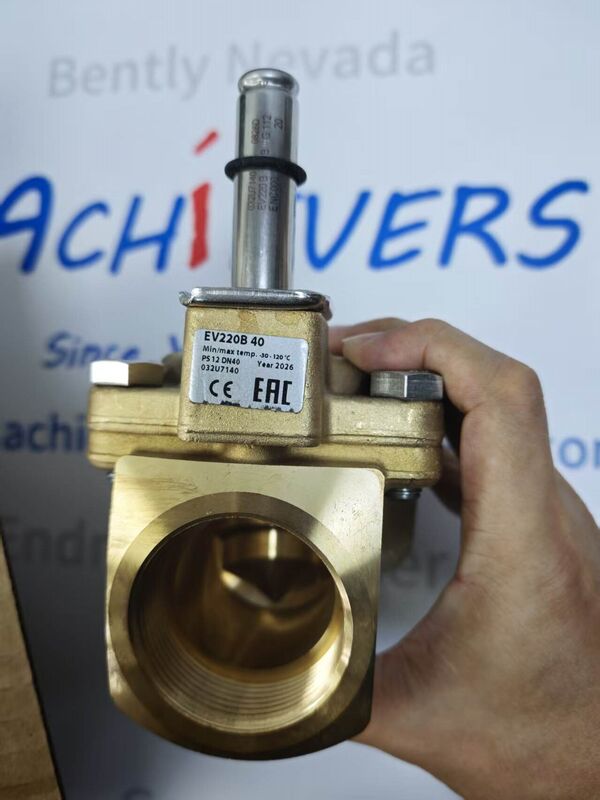

Description: Danfoss
Product No. : EV220B 40
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Danfoss EV220B 40 supports multiple seal materials including EPDM, FKM and NBR to adapt to different media such as cooling water, brine, hydraulic oil, compressed air and low-pressure steam. It can be matched with Danfoss clip-on solenoid coils including 018F6857 and other BG series coils, and reaches IP67 protection grade when equipped with terminal box coilsDanfoss. Widely used in HVAC water circulation, industrial refrigeration, heat pump systems, water treatment pipelines and automatic fluid cut-off equipment.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Model | EV220B 40 |
| Brand | Danfoss |
| Nominal Diameter | DN40 |
| Flow Coefficient (Kv) | 24 m³/h (water at 20°C)assets.danfoss.com |
| Valve Structure | 2/2-way, Servo-operated Diaphragm Type |
| Standard Function | NC (Normally Closed); NO (Normally Open Optional)assets.danfoss.com |
| Port Connection | G1 1/2 (BSPP) / NPT 1-1/2 inch thread |
| Valve Body Material | DZR Forged Brass |
| Standard Diaphragm & Seal | EPDM (FKM / NBR as alternative)assets.danfoss.com |
| Built-in Accessory | Pilot Micro Filter |
| Matched Coil Type | Danfoss BG series clip-on solenoid coils |
| Net Weight | 3.85 kg |
| Specification Item | Technical Value |
|---|---|
| Minimum Opening Differential Pressure | 0.3 barassets.danfoss.com |
| Maximum Working Differential Pressure | 16 bar |
| Maximum Test Pressure | 20 barassets.danfoss.com |
| Medium Temperature (EPDM Seal) | -30°C ~ +120°Cassets.danfoss.com |
| Medium Temperature (FKM Seal) | 0°C ~ +100°C |
| Medium Temperature (NBR Seal) | -10°C ~ +90°C |
| Maximum Ambient Temperature | ≤80°C |
| Maximum Medium Viscosity | 50 cStassets.danfoss.com |
| Protection Class (With Terminal Box Coil) | IP67 |
| Approved Media | Water, brine, oil, compressed air, low-pressure steam (≤4 bar) |
| Industry Certifications | CE, WRAS, DNVGL marine approval |
