Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kiểu: | Xi lanh khí nén | chiều rộng nhà ở: | 44mm |
|---|---|---|---|
| Vị trí lắp đặt: | Định hướng bất kỳ | Vật liệu đóng dấu: | NBR (cao su nitrile) |
| Tốc độ dòng danh nghĩa (DIN 1343): | 1600 l/phút | Phạm vi điều chỉnh áp suất: | Phạm vi điều chỉnh áp suất |
| Làm nổi bật: | Festo ISO 15552 pneumatic cylinder,double acting pneumatic cylinder,Festo DSBC-100-160-PPSA cylinder |
||
Description:

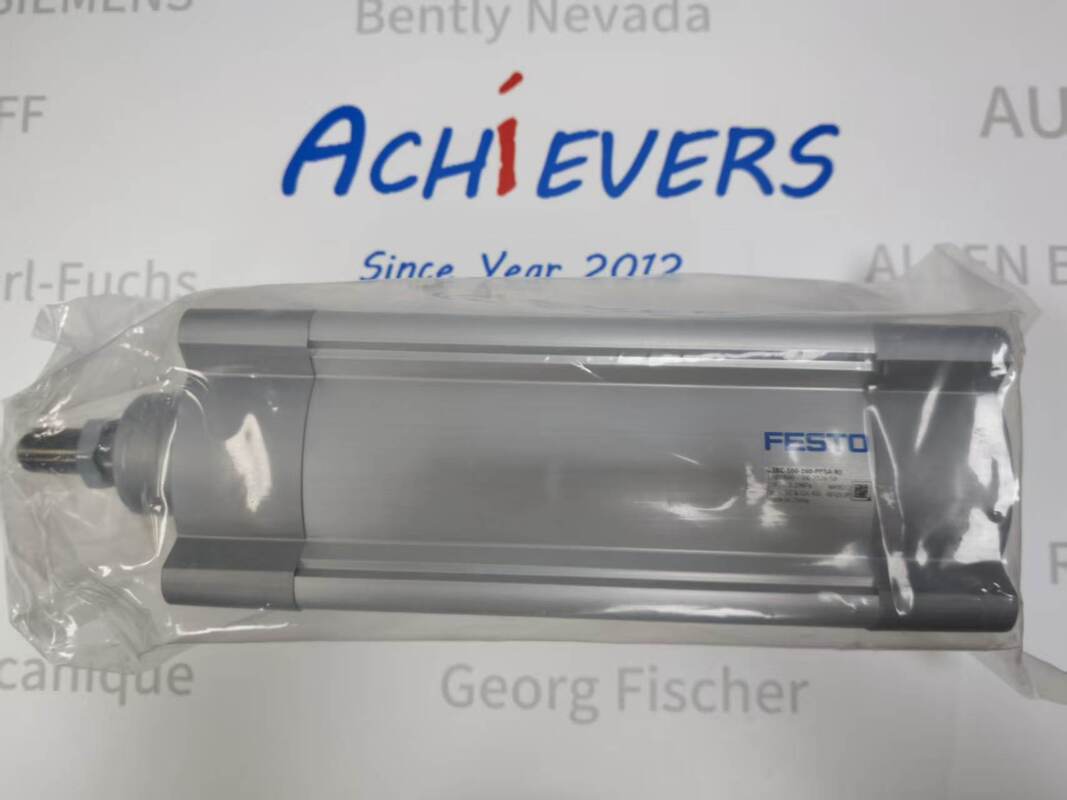

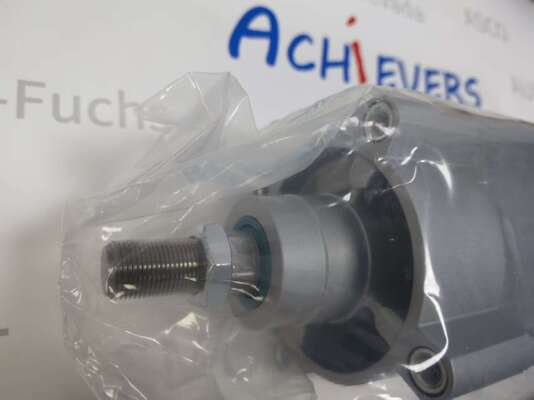

Manufacturer : Festo
Product No. : DSBC-100-160-PPSA-N3
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Part Number | DSBC-100-160-PPSA-N3 |
| Manufacturer | Festo |
| Official Order Code | 1384896 |
| Product Series | DSBC ISO 15552 Standard Pneumatic Cylinder |
| Operation Mode | Double Acting, Single Piston Rod (Male Thread End) |
| Piston Bore Diameter | 100 mm |
| Rated Working Stroke | 160 mm |
| Piston Rod Thread Spec | M20 × 1.5 External Male Thread |
| Pneumatic Connection Port | G1/2 Female Thread (ISO 228-1) |
| Cushioning Type | PPSA Self-Adjusting Pneumatic Cushion (Both Ends) |
| Single-Side Cushion Length | 31 mm |
| Max Allowable End Impact Energy | 2.5 J |
| Theoretical Extend Force @ 6 Bar | 4712 N |
| Theoretical Retract Force @ 6 Bar | 4418 N |
| Operating Pressure Range | 0.4 – 12 bar (0.04 – 1.2 MPa) |
| Total Net Weight (160mm Stroke) | 5281 g |
| Base Zero-Stroke Weight | 3665 g |
| Extra Weight Per 10mm Stroke | 101 g |
| Moving Reciprocating Mass | 1624 g |
| Extra Moving Mass Per 10mm Stroke | 39 g |
| Position Detection Support | Integrated barrel profile slot for proximity switches |
| Standard Mounting Compatibility | Multi-mode mounting via ISO 15552 accessories / internal end cap threads |
| Specification Item | Technical Value |
|---|---|
| Cylinder Barrel Material | Smooth Hard-Anodized Wrought Aluminium Alloy |
| End Cover Material | Coated Die-Cast Aluminium Alloy |
| Piston Rod Material | High-Alloy Hardened Steel |
| Seal / Wiper / Cushion Seal Material | TPE-U (PU) Polyurethane |
| Cushion Piston Material | POM Engineering Plastic |
| Operating Medium | Compressed Air ISO 8573-1:2010 [7:4:4] |
| Lubrication Compatibility | Lubricated or non-lubricated air (consistent medium required long-term) |
| Operating Ambient Temperature | -20 °C ~ +80 °C |
| Storage Temperature Range | -20 °C ~ +80 °C |
| Corrosion Resistance Class | CRC 2 (Moderate Corrosion Stress) |
| PWIS / LABS Compliance | VDMA24364-B1/B2-L Paint-Wetting-Impairment Substance Free |
| Cleanroom Classification | ISO 14644-1 Class 6 |
| Global Compliance Standards | ISO 15552, RoHS Directive Compliant |
| Allowed Mounting Orientation | Horizontal, Vertical, Any Angled Installation |
| Anti-Vibration Performance | Stable reciprocation under standard industrial workshop vibration |
| Rated Service Lifespan | Over 10 million full stroke cycles under rated pressure |
| Maximum Operating Altitude | 1000 m without air pressure derating |
