Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Thắt chặt mô -men xoắn: | 0,6Nm | phân cực đầu ra: | DC |
|---|---|---|---|
| Lỗi tuyến tính: | 0,1 % | Loại công trình: | M12 |
| Loại giao diện: | RS-485, 2 dây đa giọt | Kích thước mục tiêu: | 0,3 mm |
| Tần số chuyển đổi: | ≤ 10 Hz | Chiều dài: | 63,5mm |
| Dòng điện đầu ra: | 4-20 mA | ||
| Làm nổi bật: | Pepperl+Fuchs DIN rail mount protector,R-SP-E12 segment protector,PEPPERL FUCHS isolated barrier |
||

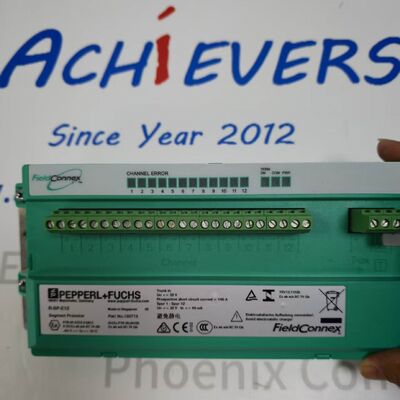

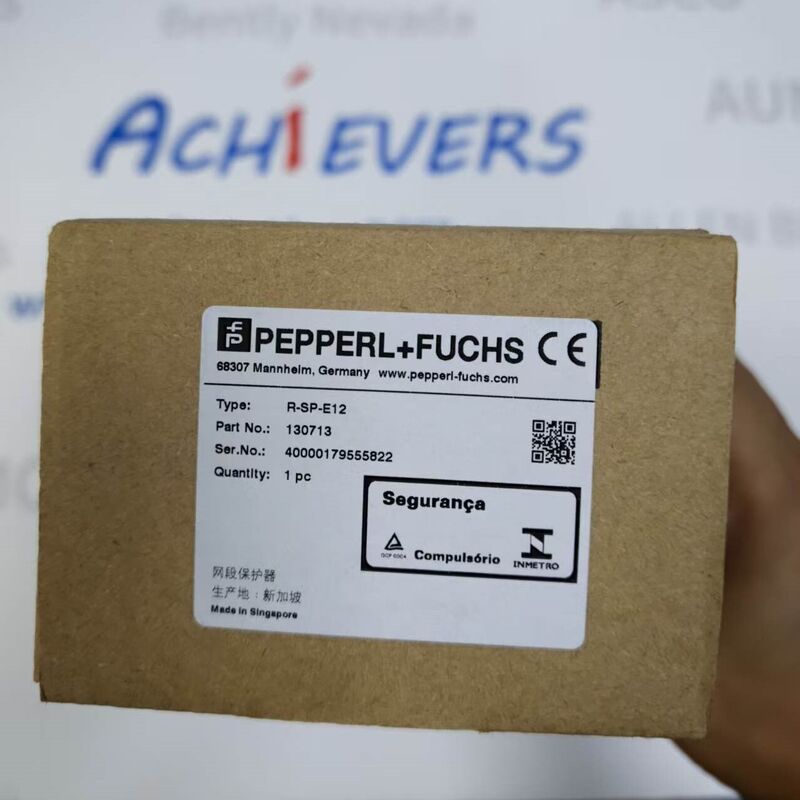

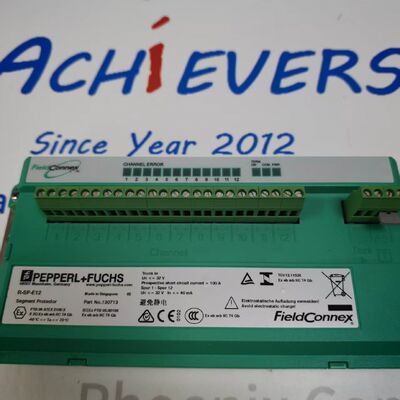

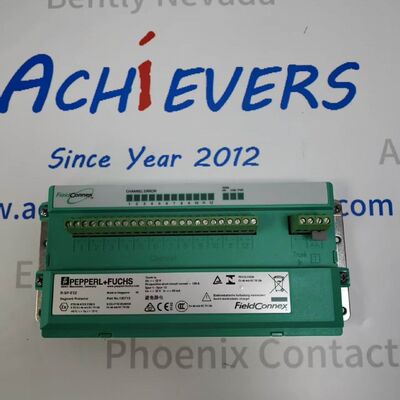

Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : R-SP-E12
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Model Number | R-SP-E12 |
| Manufacturer | Pepperl+Fuchs |
| Official Catalog Code | 130713 |
| Product Type | FieldConnex Fieldbus Segment Protector |
| Supported Fieldbus Protocols | PROFIBUS PA, FOUNDATION Fieldbus H1 |
| Mounting Style | Standard DIN Rail (TS35) Cabinet Installation |
| Total Spur Output Channels | 12 × Ex e Increased Safety Outputs |
| Main Trunk Supply Voltage Range | 9 VDC – 32 VDC (Max rated voltage ≤35 V) |
| Single Spur Rated Output Current | Max 40 mA per channel |
| Channel Short-Circuit Limited Current | Max 52 mA per spur channel |
| Module Self-Current Consumption | ≤ 9 mA |
| Total Max Power Dissipation | 250 mW |
| Max Voltage Drop (Trunk / Spurs) | ≤ 1.3 V |
| Built-In Bus Termination | Selectable 100 Ω integrated resistor |
| Surge Protection Threshold | Typ. 39 V trigger, max clamping voltage 41 V |
| Wiring Terminal Type | Fixed Screw Terminal Blocks (Trunk + 12 Spurs) |
| Overall Dimensions (W × H × D) | 216 mm × 100 mm × 50 mm |
| Net Weight | 800 g |
| Enclosure Filling Material | Fully Resin Sealed Housing |
| Ingress Protection Class | IP20 (Cabinet Internal Use Only) |
| Specification Item | Technical Value |
|---|---|
| ATEX Hazardous Area Certification | PTB 04 ATEX 2100 X |
| Explosion Protection Marking | II 2 G Ex e mb IIC T4 Gb |
| Approved Installation Zone | Cabinet located in Zone 1 / Class I Div. 2 |
| Connectable Field Devices | Ex d flameproof instruments installed in Zone 1 / Div. 1 |
| Prospective Short-Circuit Current Rating | 100 A |
| Operating Ambient Temperature | -20 °C ~ +60 °C |
| Storage Temperature Range | -40 °C ~ +70 °C |
| Allowed Relative Humidity | 0 – 95% RH, Non-Condensing |
| Vibration Resistance Standard | EN 60068-2-6, 5 g, 10 – 150 Hz |
| Shock Resistance Standard | EN 60068-2-27, 15 g, 11 ms pulse |
| Marine Approval | DNV A-14038 |
| Electromagnetic Compliance | EN 61326-1:2013 (2014/30/EU EMC Directive) |
| RoHS Compliance | EU RoHS 2 Directive Compliant |
| Status LED Indicators | Green PWR, Yellow COM, Yellow TERM ON, Red Flashing Channel Fault |
| Spur Isolation Performance | Single short-circuit spur isolated without trunk bus shutdown |
| Grounding & Shielding Support | Compatible with all standard fieldbus shielding grounding concepts |
